Canon EOS C80 6K Full-Frame Cinema Camera (Canon RF) Canon EOS C80 6K Full-Frame Cinema Camera (Canon RF)Canon EOS C80 6K Full-Frame Cinema Camera (Canon RF)Canon EOS C80 6K Full-Frame Cinema Camera (Canon RF)Canon EOS C80 6K Full-Frame Cinema Camera (Canon RF)Canon EOS C80 6K Full-Frame Cinema Camera (Canon RF)

Canon EOS C80 6K Full-Frame Cinema Camera (Canon RF)

SKU: 520366
MPN: 6389C002
BRAND: Canon
CONDITION: New

Extended Warranties Available:

Availability: In Stock
Fast & Free Shipping (Ships in 1-2 Business Days)
$5,499.00
$5,499.00
Add to Cart
Add to Wishlist
Need help? Call Us:
855-551-0555

Extended Warranty Protection Plans

Batteries & Chargers

Canon Lenses

Filters & Filter Kits

Precision Lenses

Bags & Cases

Flashes, Lights & Lighting Kits

Microphones & Light Meters

Tripods & Monopods

Lens Cleaning & Care

Screen Protectors & Cleaning Kits

6K Full-Frame Cinema Capture in a Mirrorless Form
Offering exceptional 6K30 full-frame capture in a compact form, the Canon EOS C80 6K Full-Frame Cinema Camera melds the EOS C400's CMOS sensor with a lightweight design similar to the EOS C70. Ideal for fast-paced capture and solo operators, this digital camera features triple ISO bases of 800, 3200, and 12,800 in log/raw, upgraded Dual Pixel CMOS AF II autofocus, and simultaneous 12G-SDI and HDMI video output. The EOS C80's RF mount provides compatibility with fast, reliable Canon RF lenses, and a motorized ND filter wheel enables on-the-fly exposure tweaking.
6K Full-Frame Sensor
The 6K full-frame CMOS sensor at the heart of the C80 camera enables it to offer exceptionally low noise, increased sensitivity efficiency, and better 4K imagery via 6K oversampling. All this is possible thanks to the improved light capture technology of the back-illuminated, stacked CMOS sensor.
Multiple Recording Formats
  • The C80's multiple recording formats include up to full-frame 6K30 Canon Cinema RAW Light LT and cropped S35 up to 4K30 in RAW ST and 4K60 in RAW LT.
  • Oversampled 4K 120p or 2K 180p with maximized detail is available, all with 4:2:2 10-bit color.
  • Slow and fast motion can be captured at rates up to UHD 4K120 in HEVC and AVC codecs.
  • Make your editing process easier using XF-AVC S and XF-HEVC S codecs, featuring an easier naming system and folder structure, as well as metadata preservation, all within the established MP4 format.

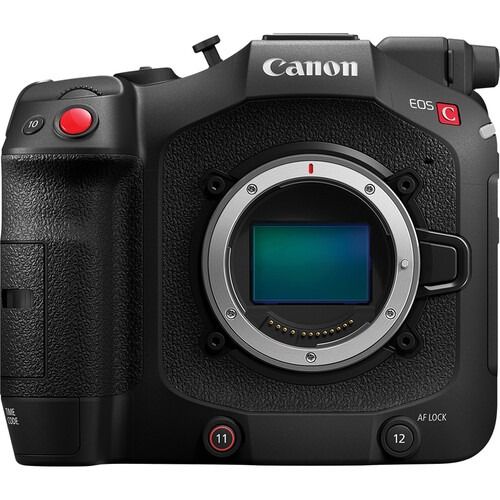

RF Lens Mount
  • A built-in RF lens mount lends the EOS C80 compatibility with Canon's line of fast, reliable RF-mount lenses with advanced coatings and image stabilization.
  • With a short flange distance, the RF mount helps to noticeably reduce the camera body's depth, resulting in a more compact design.
Optional PL-RF Adapter
  • A new PL-RF lens mount adapter enables you to access a wide variety of ARRI PL-mount cine-style lenses.
  • This adapter features Cooke/i metadata compatibility and locking plates for a secure fit.
Multiple Interfaces Including 12G-SDI
  • Video outputs include full-size HDMI and 12G-SDI BNC outputs that can be used simultaneously for feeding an onboard monitor, video transmitter, or EVF.
  • Use the USB-C port for UVC video output or to connect to a smartphone or the Canon GP-E2 GPS receiver.
  • A BNC connector enables users to input and output timecode, making syncing on multicamera shoots easier.
  • Note that the BNC port can output either SDI video or timecode but not both simultaneously.
Dual-Pixel CMOS Autofocus
  • Improved Dual-Pixel CMOS AF Technology uses each pixel on approximately 100% of the CMOS sensor for focus detection and image information.
  • The back-illuminated stacked sensor's excellent light capture widens the sensor area, which can be used for AF.
  • The EOS C80 also offers the EOS iTR AF X autofocus function featuring an algorithm developed using deep-learning technology to detect the human form.
Mini-XLR Audio Inputs
  • Two mini-XLR inputs with phantom power and manual control dials provide professional audio recording options.
  • The EOS C80 supports 4-channel audio using dual mini-XLR ports, an internal stereo mic, and a 3.5mm mic input.
Built-In ND Filters
  • Designed for the EOS C80 RF mount's short flange distance, a thin motorized ND filter unit enables users to quickly select up to 10 stops of neutral density.
  • ND button controls on the right side of the camera enable operators to quickly adjust exposure while maintaining their shot's depth of field.
Log2/3 and 3D LUT Support
For greater post-production flexibility, the C80 offers Canon's Log 2 and Log 3 gamma modes, which provide an expanded dynamic range with excellent tonal reproduction for highlights and in low-light areas of your images. The EOS C80 also supports 3D LUTs, so you can get the most accurate color reproduction on both the LCD and your external viewing monitors.

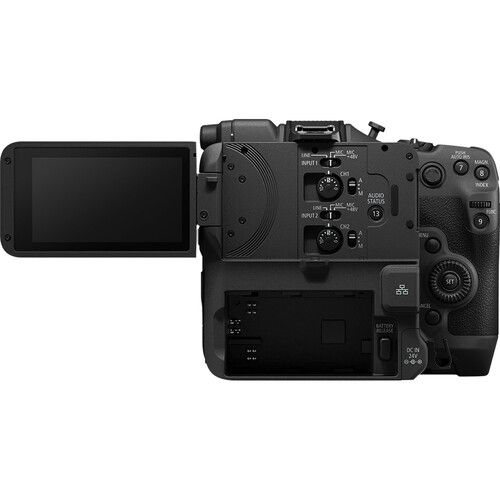

Compact Design with Tilting LCD
  • The compact EOS C80 features a lightweight design with a built-in ergonomic grip and a joystick control.
  • It has a Multi-Accessory hot shoe on top and comes with a detachable handle and a mic holder.
  • The LCD screen features a reinforced hinge and built-in controls like focus peaking, waveforms, and more.

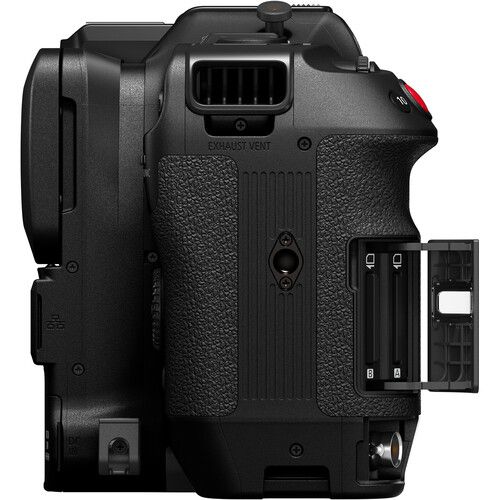

Dual SD Card Slots / Multiple Recording Options
Dual SD card slots on the EOS C80 offer simultaneous, relay, and proxy video recording. The EOS C80 can also capture JPEG still photos.
Ethernet and Wi-Fi Control
  • Use the Ethernet port and built-in Wi-Fi with an optional Canon RC-IP1000 or RC-IP100 unit to access the XC protocol-base remote control.
  • Compatibility with the Canon Multicamera Control app for iPhone provides monitoring and start/stop, focus, iris, zoom, ND filter, ISO, shutter, white balance, custom picture control, and more.
BP-AN Series Battery
  • Use the included BP-A30N battery, a BP-A60N battery, or a 24 VDC adapter to power the C80. Older BP-A batteries can also be used but will not power the Multi-Accessory hot shoe.
  • Support your C80 with a third-party cage to add a V-mount or Gold mount battery plate to enable longer runtimes.

Lens Mount
Canon RF
Sensor Resolution
Actual: 26.67 Megapixel (6202 x 4300)
Effective: 19.05 Megapixel (6008 x 3170)
Image Sensor
Full-Frame BSI Stacked CMOS
Image Stabilization
Digital, 5-Axis
Internal Recording Modes
Cinema RAW Light 12-Bit
UHD 6K (6000 x 3164) at 23.98/24.00/25/29.97 fps [553 to 639 Mb/s]
4368 x 2304 at 23.98/24.00/25/29.97/50/59.94 fps [293 to 678 Mb/s]
XF-AVC S Intra 4:2:2 10-Bit
4096 x 2160 at 59.94/60.00 fps [600 Mb/s]
3840 x 2160 at 50/60.00 fps [500 Mb/s]
2048 x 2160 at 59.94/120 fps [300 Mb/s]
1920 x 1080 at 50/120 fps [250 Mb/s]
XF-AVC S Intra 4:2:2 10-Bit
4096 x 2160 at 50/59.94/120 fps [250 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [150 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [50 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [120 to 300 Mb/s]
XF-AVC S Long GOP 4:2:0 8-Bit
4096 x 2160 at 50/59.94/120 fps [150 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [100 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
XF-HEVC S Intra 4:2:0 8-Bit
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [9 to 16 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [9 to 16 Mb/s]
1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps [6 Mb/s]
XF-HEVC S Long GOP 4:2:2 10-Bit
4096 x 2160 at 50/59.94/120 fps [225 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [135 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps [50 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps [50 Mb/s]
XF-HEVC S Long GOP 4:2:0 10-Bit
4096 x 2160 at 50/59.94/120 fps [150 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [100 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/59.94/180 fps [35 Mb/s]
XF-HEVC S Long GOP 4:2:0 10-Bit
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [9 to 16 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [9 to 16 Mb/s]
XF-HEVC S Long GOP 4:2:0 8-Bit
1280 x 720 at 23.98/24.00/25/50/59.94 fps [6 Mb/s]
Show More
External Recording Modes
SDI/BNC / HDMI / USB
4096 x 2160
Media/Memory Card Slot
Slot 1: SD/SDHC/SDXC
Slot 2: SD/SDHC/SDXC
Video I/O
1x BNC (12G-SDI) Output
1x HDMI (Unspecified Signal) Output
Mobile App Compatible
Yes: iOS Only
App Name: Remote Camera Control App
Functionality: Adjust Settings, Remote Control, View Live Feed
Battery Type
Canon BP-AN Series
Imaging
Lens Mount
Canon RF
Lens Communication
Yes, Cooke /i
Sensor Resolution
Actual: 26.67 Megapixel (6202 x 4300)
Effective: 19.05 Megapixel (6008 x 3170)
Image Sensor
Full-Frame BSI Stacked CMOS
Image Stabilization
Digital, 5-Axis
Built-In ND Filter
Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64), 8-Stop (1/256), 10-Stop (1/1024) ND Filters
Internal Filter Holder
No
Capture Type
Stills & Video
Exposure Control
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/2000 to 1 Second
ISO Sensitivity Range
100 to 102,400
Shutter Angle
11.25 to 360°
Advertised Dynamic Range
16 Stops
Signal-to-Noise Ratio
67 dB
Video Capture
Internal Recording Modes
Cinema RAW Light 12-Bit
UHD 6K (6000 x 3164) at 23.98/24.00/25/29.97 fps [553 to 639 Mb/s]
4368 x 2304 at 23.98/24.00/25/29.97/50/59.94 fps [293 to 678 Mb/s]
XF-AVC S Intra 4:2:2 10-Bit
4096 x 2160 at 59.94/60.00 fps [600 Mb/s]
3840 x 2160 at 50/60.00 fps [500 Mb/s]
2048 x 2160 at 59.94/120 fps [300 Mb/s]
1920 x 1080 at 50/120 fps [250 Mb/s]
XF-AVC S Intra 4:2:2 10-Bit
4096 x 2160 at 50/59.94/120 fps [250 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [150 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [50 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [120 to 300 Mb/s]
XF-AVC S Long GOP 4:2:0 8-Bit
4096 x 2160 at 50/59.94/120 fps [150 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [100 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
XF-HEVC S Intra 4:2:0 8-Bit
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [9 to 16 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [9 to 16 Mb/s]
1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps [6 Mb/s]
XF-HEVC S Long GOP 4:2:2 10-Bit
4096 x 2160 at 50/59.94/120 fps [225 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [135 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps [50 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps [50 Mb/s]
XF-HEVC S Long GOP 4:2:0 10-Bit
4096 x 2160 at 50/59.94/120 fps [150 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [100 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/59.94/180 fps [35 Mb/s]
XF-HEVC S Long GOP 4:2:0 10-Bit
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [9 to 16 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [9 to 16 Mb/s]
XF-HEVC S Long GOP 4:2:0 8-Bit
1280 x 720 at 23.98/24.00/25/50/59.94 fps [6 Mb/s]
External Recording Modes
SDI/BNC / HDMI / USB
4096 x 2160
Recording Sensor Crop
Crops to Output Resolution When Using Super35 Mode
Fast-/Slow-Motion Support
Yes
Gamma Curve
Canon Log 2, Canon Log 3, HDR-HLG, Rec709, Rec2020
Built-In Microphone
Stereo
Audio Recording
Cinema RAW Light: 4-Channel 24-Bit 48 kHz LPCM Audio
XF-AVC: 4-Channel 24-Bit 48 kHz LPCM Audio
XF-AVC S, XF-HEVC S: 4-Channel 24-Bit 48 kHz LPCM Audio
XF-AVC S, XF-HEVC S: 2-Channel 16-Bit 48 kHz AAC Audio
IP Streaming
H.264, MPEG2, RTP, RTSP, SRT, UDP
1920 x 1080 at 50i, 50p, 59.94i, 59.94p (4.0 to 9.0 Mb/s)
Interface
Media/Memory Card Slot
Slot 1: SD/SDHC/SDXC
Slot 2: SD/SDHC/SDXC
Video I/O
1x BNC (12G-SDI) Output
1x HDMI (Unspecified Signal) Output
Audio I/O
2x Mini XLR Input
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O
1x Barrel (23.7 to 25VDC) Input
Other I/O
1x RJ45 (XC) Control
1x USB-C Monitor
1x BNC (Timecode) (Shared with Video Output)
1x 2.5 mm Sub-Mini (LANC) Control
Wireless
2.4 / 5 GHz Wi-Fi 5 (802.11ac)
Mobile App Compatible
Yes: iOS Only
App Name: Remote Camera Control App
Functionality: Adjust Settings, Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.)
No
Focus
Focus Type
Auto and Manual Focus
Focus Mode
Continuous-Servo AF, Focus Lock AF Area Mode, Manual Focus, One-Shot AF
General
Operating Conditions
32 to 104°F / 0 to 40°C up to 85% Humidity
Storage Conditions
23 to 113°F / -5 to 45°C up to 60% Humidity
Battery Type
Canon BP-AN Series
Shoe Mount
1x Intelligent Hot Shoe

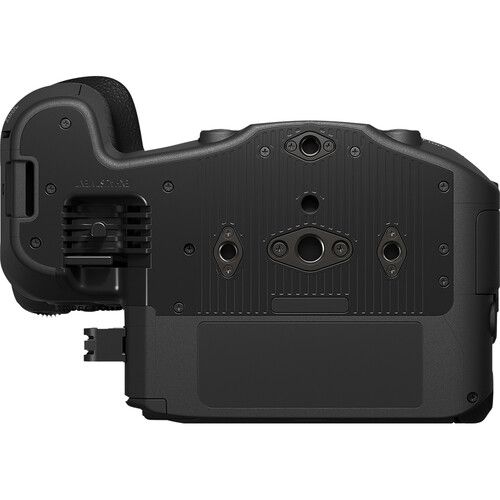

Tripod Mounting Thread
1x 3/8"-16 Female
2x 1/4"-20 Female
Accessory Mounting Thread
No
Dimensions (W x H x D)
6.3 x 5.4 x 4.6" / 160 x 138 x 116 mm
10.9 x 6.8 x 6.3" / 276 x 173 x 160 mm (With Handle, Included Battery, Mic Holder)
Weight
2.87 lb / 1.30 kg (Body Only)
3.406 lb / 1.545 kg (With Battery, Handle)
Packaging Info
Package Weight
6.385 lb
Box Dimensions (LxWxH)
11 x 8.9 x 7.4"
  • Canon EOS C80 6K Full-Frame Cinema Camera (Canon RF)
  • Canon BP-A30N Battery Pack
  • Handle Unit
  • Canon CA-CP300B Compact Battery Charger
  • Canon Single Battery Charger for EOS C300 Mark II, C200, and C200B Batteries
  • Microphone Holder
  • SS-1200 Shoulder Strap
  • Tape Measure Hook
  • Grip Belt
  • Brand New Factory Fresh Import Model
